Whether you’re installing new guides or making a service call, we’re always here to help with tips, answers, and expert advice about how to achieve the best performance.
Share the short check list below with your team, to help them save time on-site, avoid common frustrations and improve elevator ride quality.

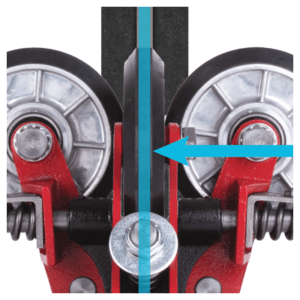

1. Roller guide and rail alignment
- Roller guide must be aligned perpendicular to guide rail
- Adjust roller guide until the alignment is correct
2. Roller wheel positioning
- Face roller wheel should be centered on face of guide rail
- Adjust roller guide left or right to center face roller wheel

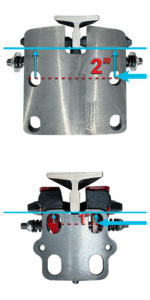

3. Guide base-to-face of guide rail distance
- Install with correct distance from face of guide rail to the guide base
- Align center of the front mounting bolt slot the specified distance from face of guide rail
- Model B – 2” from face of guide rail
- Model D – 1” from face of guide rail
4. Roller wheel preload (25 – 50 lbf)
- Preload should be between 25 – 50 lbf on the side and face roller wheels
- It should be possible to skid roller wheels on guide rail by hand with moderate effort

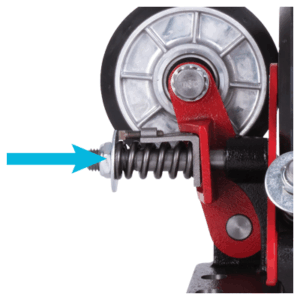

Side roller wheel preload
- Adjust preload force on guide rail using the side arm adjustment nut

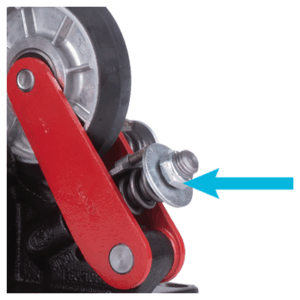

Face roller wheel preload
- Adjust preload force on guide rail using the face arm adjustment nut
- Turn side arm or face arm nuts clockwise to increase the force and counterclockwise to reduce it, until the correct force is achieved

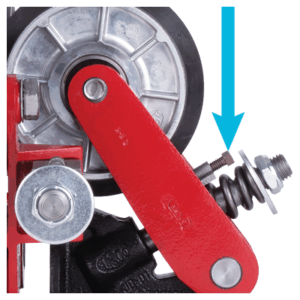

5. Elevator float (MODEL B only)
- Set maximum float
- Turn square-head set screw to increase or decrease the gap between flat washer and head of square-head set screw
- Amount of float will be approximately twice the gap measured i.e. 1/16” gap = 1/8” float
Note:
- DO NOT lubricate any parts of Model B or Model D roller guide
- Model D does not have adjustable stops
If you still have questions about installing ELSCO roller guides, don’t hesitate to call ELSCO Customer Service at 410.363.9020, or e-mail us at info@elscoguides.com. We are always available to help troubleshoot technical issues.
