High Speed Applications Deserve the Industry’s Gold Standard – the Model A and Model C

When ride quality is critical, install the Model A and Model C roller guides – the industry’s gold standard for use in high-rise buildings.

The Model A and Model C roller guide pairing is designed to deliver excellent ride quality at speeds of up to 800 fpm with a car capacity of up to 7,000 lbs, making it ideal for most high-rise passenger elevator applications.

Key features make these roller guides ideally suited for high-rise applications:

Model A and Model C1. Tandem-Roller Arms

The tandem-roller arm design gives added stability that can easily handle high speeds and steps over misaligned rails minimizing counterweight or in-car vibration.

2. Fully Adjustable Stabilizing Springs

Stabilizing springs are used to adjust the preload of the roller wheels on the rails which minimizes bumps and reduces peak-to-peak lateral forces.

3. Adjustable Stop

The adjustable stop on the face arm allows control of the overall float of the elevator car or counterweight between the rails in a post-to-post direction.

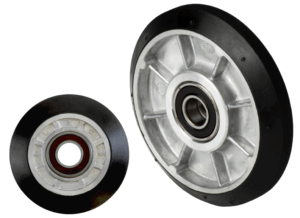

Roller Wheels Neoprene Roller Wheels

Supplied with ELSCO’s premium neoprene rubber roller wheels as standard, these guides will reduce noise and vibration in the hoistway and throughout the building, ensuring the elevator ride will GO UNNOTICED.
